Product Center
Professional casting equipment designed for precision, efficiency, and reliability.

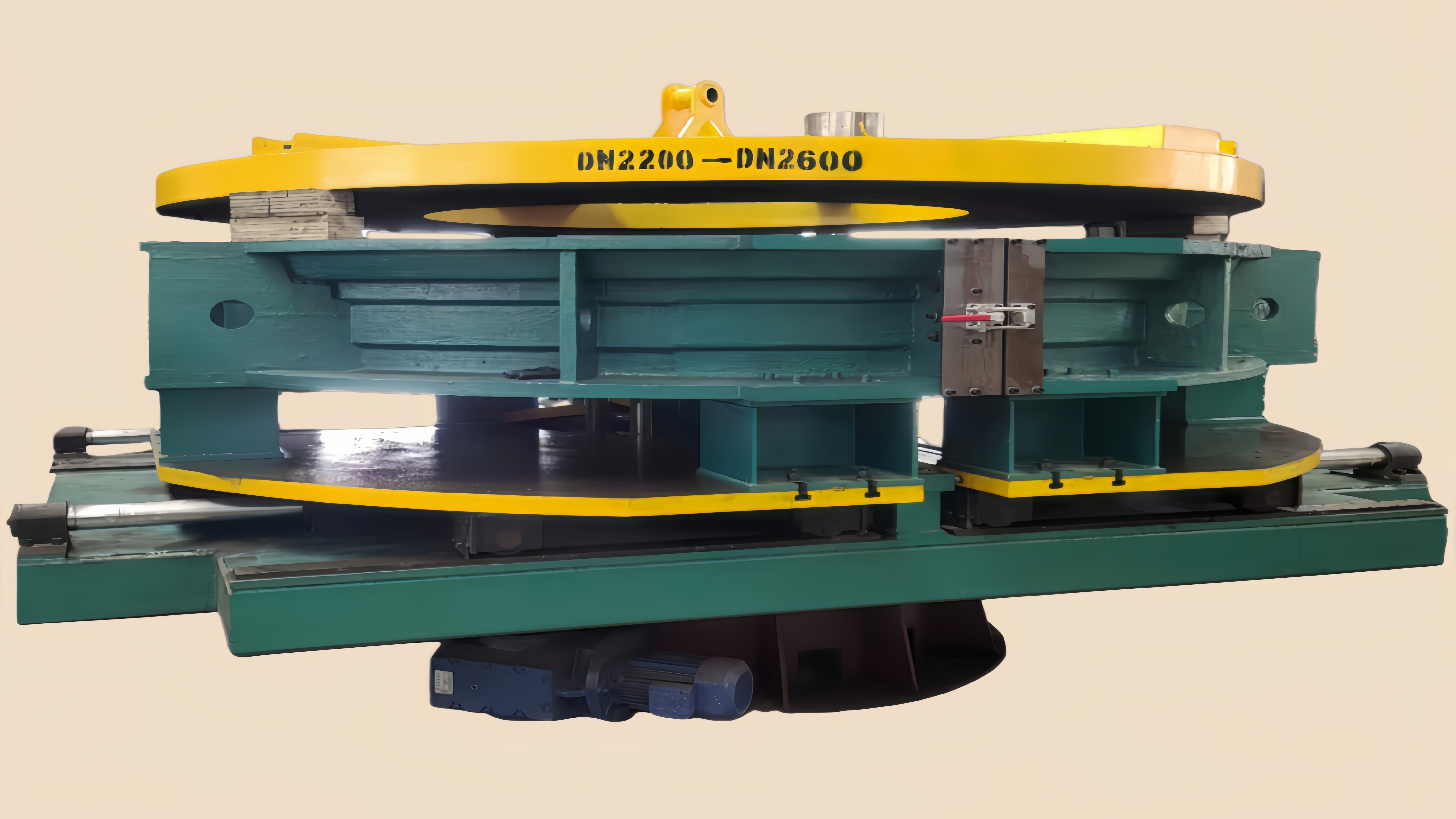

Semi-Automatic Core Making Machine
Model: ZL-2600
Turntable diameter: 4650 mm
Maximum sand core size: DN2600
Power: 25 kW
Pressure: 0.6~0.8 MPa
Fuel tank capacity: 200 liters
Semi-automatic core making machines are primarily used to produce large sand cores, typically with diameters greater than 2000mm, such as DN2200, DN2400, DN2600, and DN3000.
For ductile iron pipe production lines with low speed requirements and large core specifications, semi-automatic core-making machines offer a more cost-effective solution.

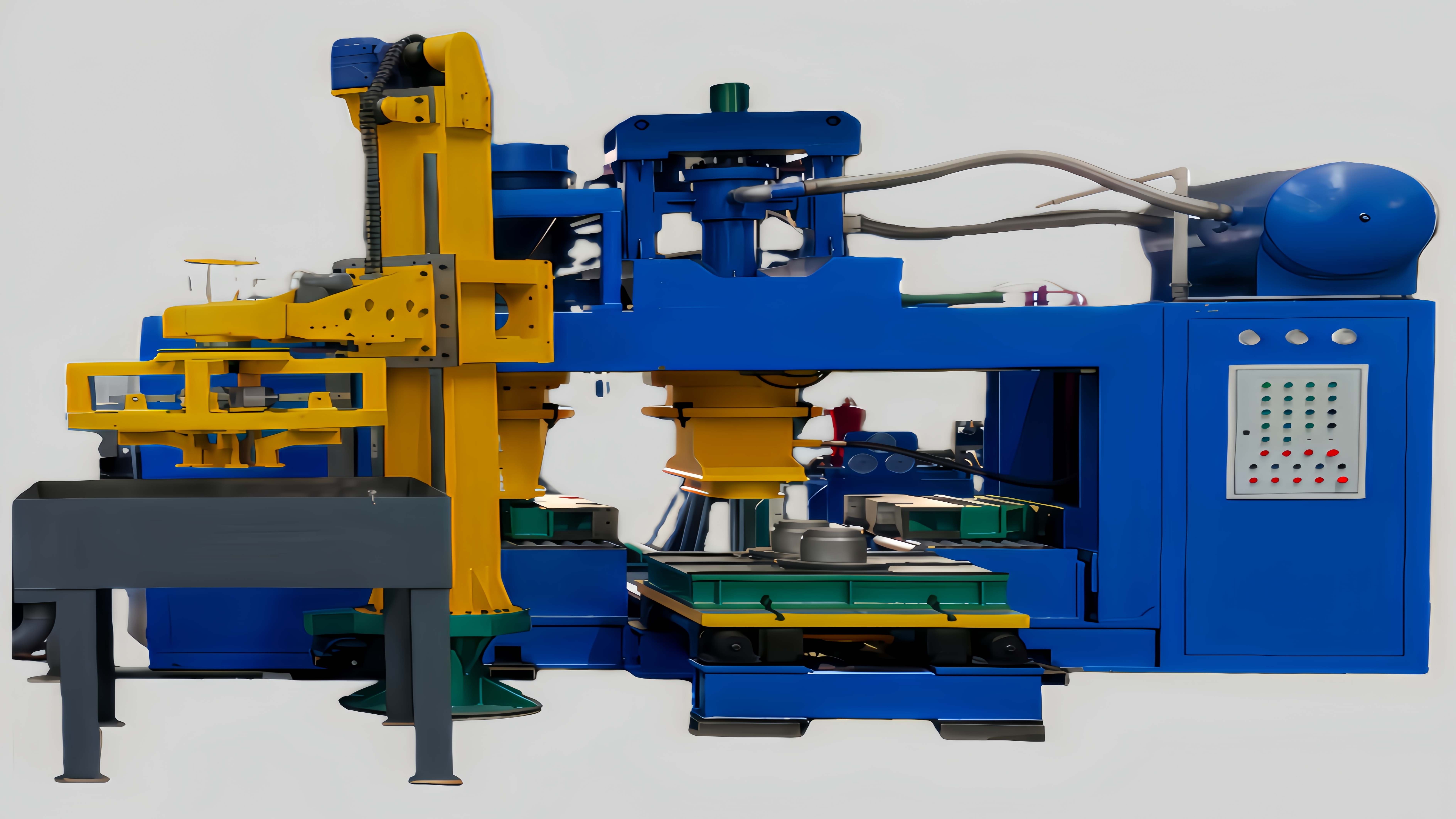

Fully Automatic Core Shooting Machine
Model: ZL30, ZL50, ZL60, ZL125, ZL2000
Maximum sand shot volume: 45 kg/30 L, 75 kg/50 L, 90 kg/60 L, 150 kg/100 L, 675 kg/450 L
Maximum core size: DN600, DN800, DN1000, DN1200, DN2000
Power: 16 kW, 15 kW, 25 kW, 20 kW, 37 kW
Pressure: 0.6~0.8 MPa
Fuel Tank Capacity: 400L, 500L, 500L, 570L, 800L
Our fully automatic core shooting machine is the primary production equipment for sand cores used in ductile iron pipe manufacturing.
They play a vital role in advancing automation, reducing labor requirements and physical strain, boosting production efficiency, and achieving energy conservation and emission reduction in the casting industry.
